Symbol Libraries Panel

The Symbol Library panel provides all the necessary features for handling symbol libraries.

Click on the Symbol Libraries icon to reveal the panel.

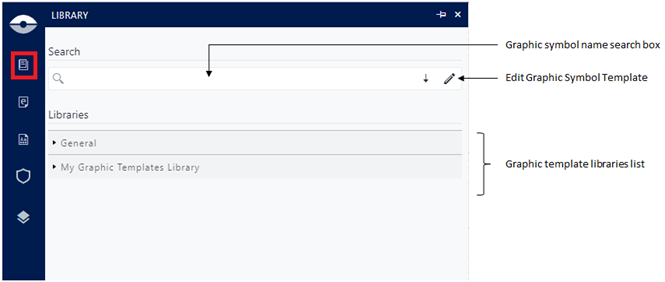

Display Libraries

SFHub supports three types of libraries:

General​

The General library is provided by default and contains prefabs and SWTB symbols. The library cannot be edited by SFHub Users, and it is distributed with the setup kit.

Whiteboard​

The Whiteboard library is provided by default and contains a set of typical Graphic Templates. The library can be edited by SFHub Users but cannot be deleted. The basic library is distributed with the setup Kit.

Custom Graphic Template​

Custom Graphic Template libraries shall be defined and maintained by the SFHub users.

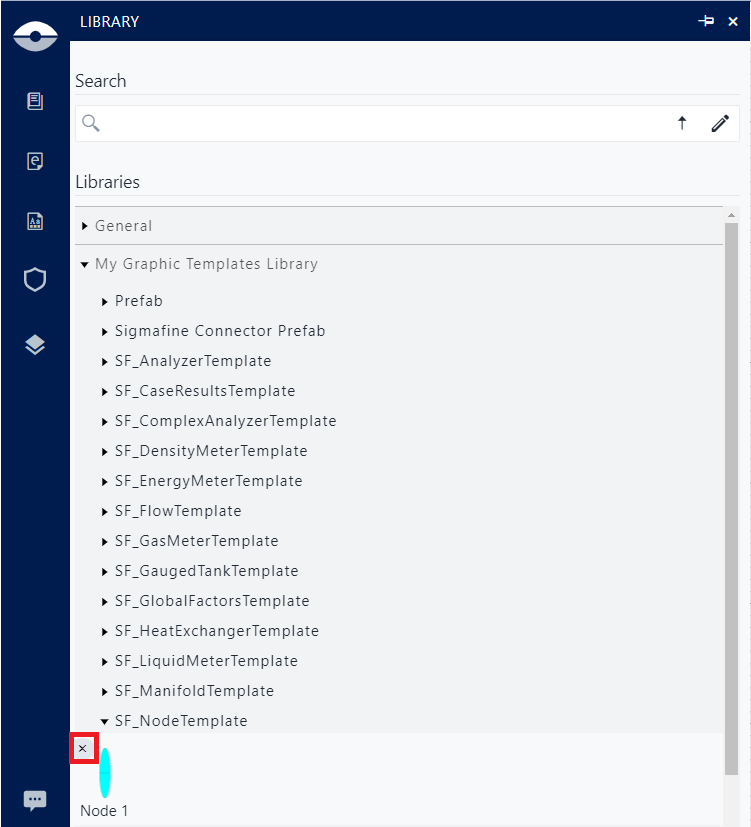

Delete Graphic Symbol Template​

On the Library Search panel, the Delete icon is shown beside each graphic symbol allowing the icon removal from the library.

Delete Symbol
