Configuring - Rectangular Tank with Flat Ends

To use the wizard to do a tank volume calculation for a rectangular tank with flat ends:

  1. Follow steps 1 through 8 under Configuring - Geometric Calculation, then continue with the steps below.

  2. In the Tank Volume From Gauge Data Reference window, select Rectangular Tank with Flat Ends as the geometric calculation.

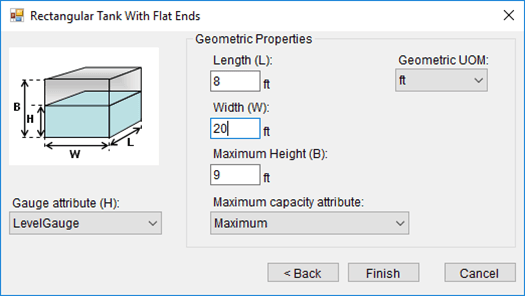

    The Rectangular Tank with Flat Ends window opens.Figure 607: Rectangular Tank with Flat Ends window

  3. Select the Gauge attribute and Geometric Properties using the following table as a guide.

    Rectangular Tank with Flat Ends

    Input Box / ButtonDescription
    Gauge attribute (H)Select the gauge Attribute to use in the data reference.
    Geometric Properties
    Length (L)Enter the length of the tank.
    Width (W)Enter the width of the tank.
    Maximum Height (B)Enter the maximum height of the tank.
    Geometric UOMSelect the unit of measure to use in the data reference.
    Maximum capacity attributeSelect the Maximum Attribute to use in the data reference.

  4. When finished with the configuration, click Finish to save the configuration.
