Configuring - Cylindrical Horizontal Tank with Hemispherical Ends

To use the wizard to do a tank volume calculation for a cylindrical horizontal tank with hemispherical ends:

1. Follow steps 1 through 8 under Configuring - Geometric Calculation, then continue with the steps below.

2. In the Tank Volume From Gauge Data Reference window, select Cylindrical Horizontal with Hemispherical Ends as the geometric calculation.

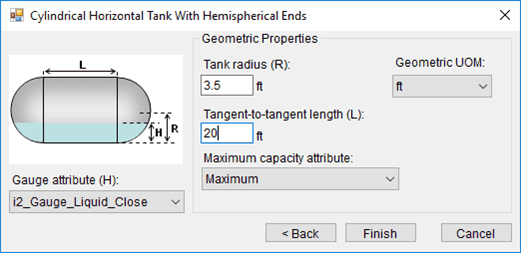

   The Cylindrical Horizontal With Hemispherical Ends window opens.

3. Select the Gauge attribute and Geometric Properties using the following table as a guide.

   Cylindrical Horizontal with Hemispherical Ends

   Input Box / Button	Description
   Gauge attribute (H)	Select the gauge Attribute to use in the data reference.
   Geometric Properties
   Tank radius (R)	Enter the radius of the tank.
   Tangent-to-tangent length (L)	Enter the tangent-to-tangent length of the tank.
   Geometric UOM	Select the unit of measure to use in the data reference.
   Maximum capacity attribute	Select the Maximum Attribute to use in the data reference.

4. When finished with the configuration, click Finish to save the configuration.
