GetTableValues Data Reference

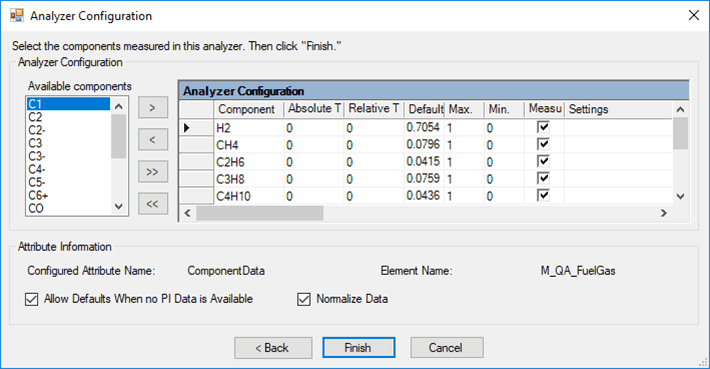

GetTableValues Data Reference allows you to bring in a well-defined value from a Components Data Table stored in an Element attribute. GetTableValues Data Reference is intended to implement a table look-up over a Components Data table configured by the Component Data Reference.

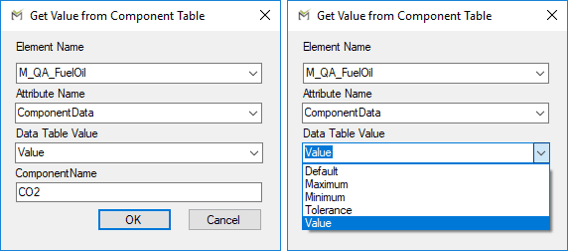

The GetTableValues Data Reference configuration window is shown in the following figures.

Input Box	Description
Element Name	The source Element from which the component value is picked up.
Attribute Name	The element’s Attribute containing the ‘Component Table’.
Data Table Value	The table column from which the value is picked up.
Component Name	The component name for which the value is returned.

When configuring the data reference at Sigmafine Case level, it is possible to pick up the component name directly from the component data table as shown in the following examples.

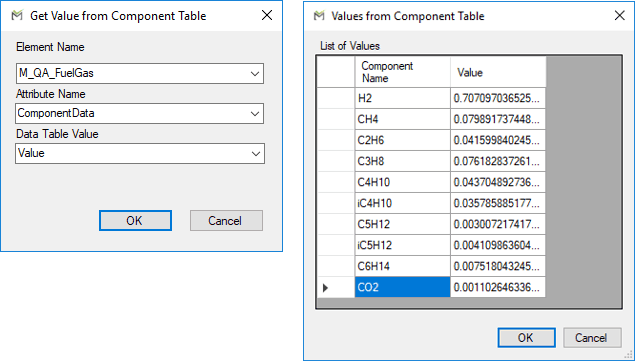

EXAMPLE: Get Value from Component Table - Values from Component Table

EXAMPLE: Values from Component Table shown in System Explorer
