Configuring - Cylindrical Vertical Tank with Hemispherical End

To use the wizard to do a tank volume calculation for a cylindrical vertical tank with a hemispherical end:

1. Follow steps 1 through 8 under Configuring - Geometric Calculation, then continue with the steps below.

2. In the Tank Volume From Gauge Data Reference window, select Cylindrical Vertical Tank with Hemispherical End as the geometric calculation.

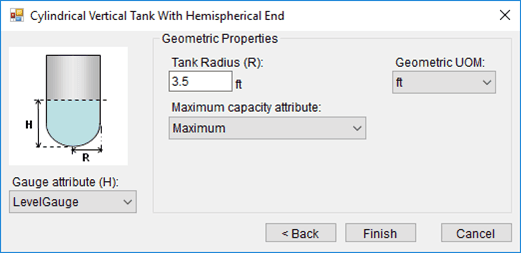

   The Cylindrical Vertical Tank With Hemispherical End window opens.

3. Select the Gauge attribute and Geometric Properties using the following table as a guide.

   Cylindrical Vertical Tank with Hemispherical End

   Input Box / Button	Description
   Gauge attribute (H)	Select the gauge Attribute to use in the data reference.
   Geometric Properties
   Tank radius (A)	Enter the radius of the tank.
   Geometric UOM	Select the unit of measure to use in the data reference.
   Maximum capacity attribute	Select the Maximum Attribute to use in the data reference.

4. When finished with the configuration, click Finish to save the configuration.
