Configuring - Measurement Tolerance Calculation

This configuration can be done at the template or individual Element level. The example procedure shown below is done at the template level.

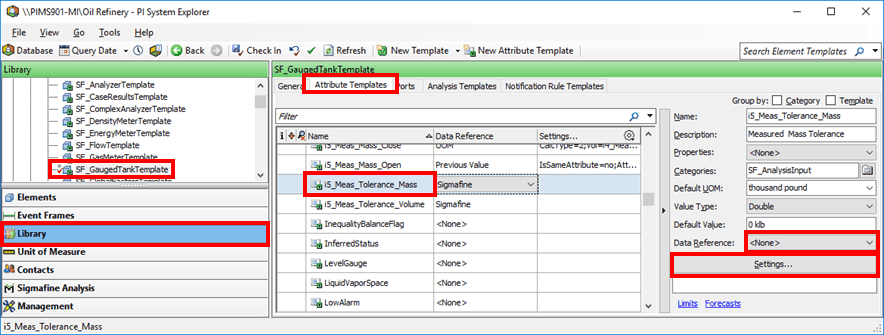

1. In the System Explorer navigation pane, click on Library.

2. From the Templates > Element Templates tree, select the tank template (i.e., SF_GaugedTankTemplate).

3. Click on the Attribute Templates tab.

4. In the Name column, select the Attribute for the tolerance (i.e., i5_Meas_Tolerance_Mass).

5. Click on the Data Reference down-arrow and select Sigmafine.

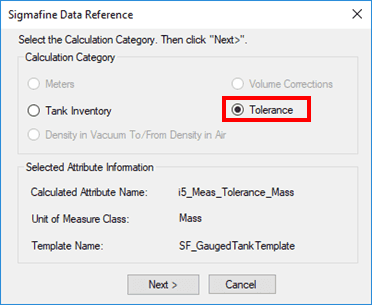

6. Click the Settings button to open the Sigmafine Data Reference window.

7. Under Calculation Category select Tolerance.

8. Click Next.

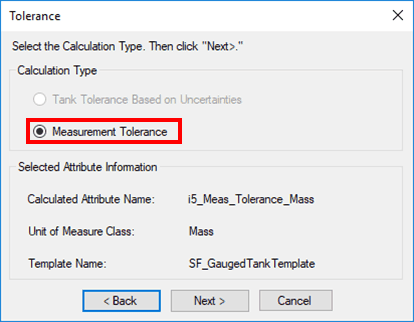

   The Tolerance window opens.

9. Select Measurement Tolerance.

10. Click Next.

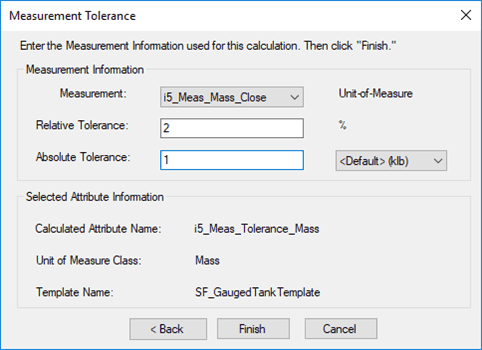

    The Tank Tolerance Based on Uncertainties window opens.

11. Using the following Measurement Uncertainty table, enter/select the Attributes for Measurement Tolerance.

    Measurement Tolerance

    Input Box / Button	Description
    Measurement	Select attribute; Unit=Volume or Mass.
    Relative Tolerance	Enter number in percent.
    Absolute Tolerance	Enter number in selected UOM.
    Unit of Measure	Select the UOM for the Absolute tolerance.

12. When finished, click Finish to complete the configuration.

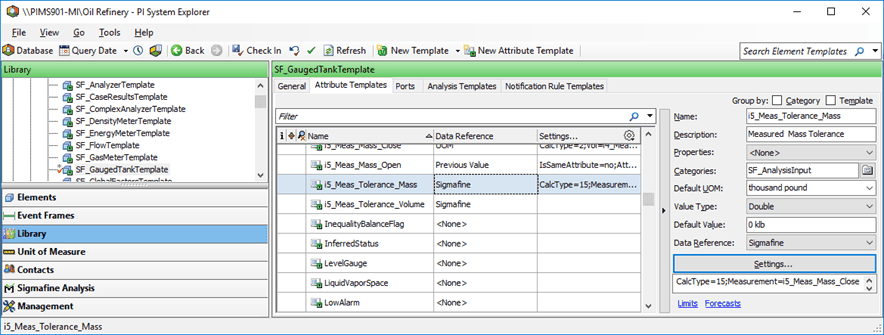

The following sample displays the configuration in the System Explorer window.
