Configuring - Density in Vacuum To/From Density in Air

This configuration can be done at the template or individual Element level. The example procedure shown below is done at the template level.

1. In the System Explorer navigation pane, click on Library.

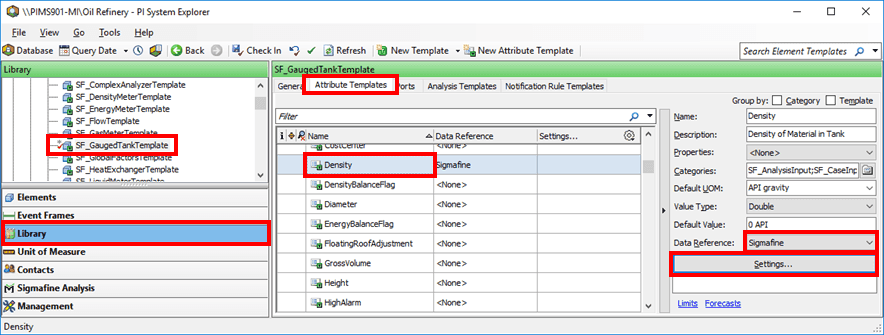

2. From the Templates > Element Templates tree, select the tank template (i.e., SF_GaugedTankTemplate).

3. Click on the Attribute Templates tab.

4. In the Name column, select the Attribute for the density (i.e., i_Density).

   The selected Attribute must have a Volume Class UOM.

5. Click on the Data Reference down-arrow and select Sigmafine.

6. Click the Settings button to open the Sigmafine Data Reference window.

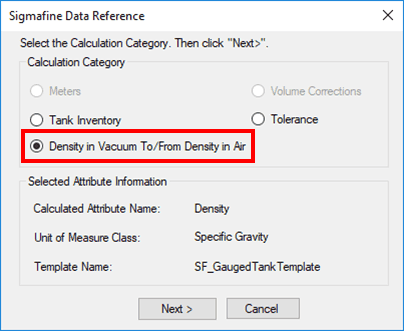

7. Under Calculation Category select Density in Vacuum To/From Density in Air.

8. Click Next.

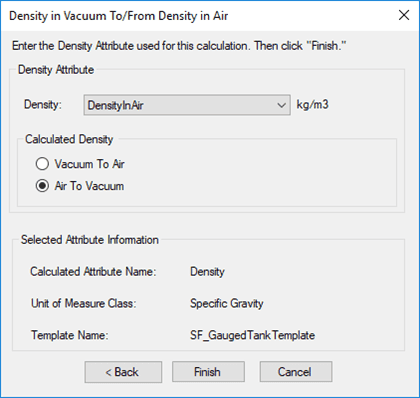

   The Density in Vacuum To/From Density in Air window opens.

9. Using the following table, click on the Density down-arrow and select the appropriate attribute.

10. Using the following table, select the Calculated Density option.

    Calculated Density Options

    Option	Description
    Density	Select attribute; units of Density.
    Calculated Density	Select Vacuum To Air or Air To Vacuum.

11. When finished, click Finish to complete the configuration.

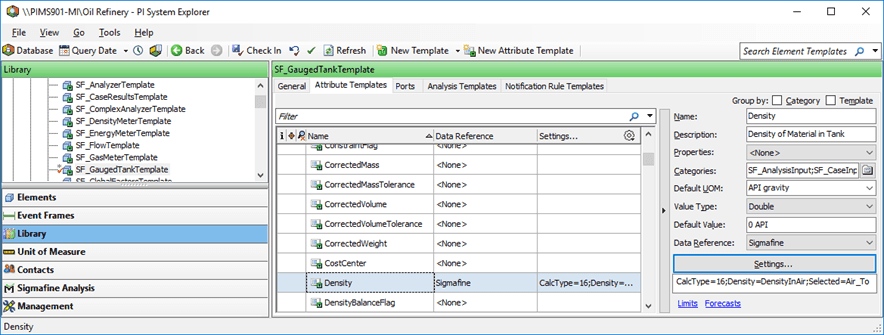

The following sample displays the configuration in the System Explorer window.
