Configuring - Volume Correction Factor

This configuration can be done at the template or individual Element level. The example procedure shown below is done at the template level.

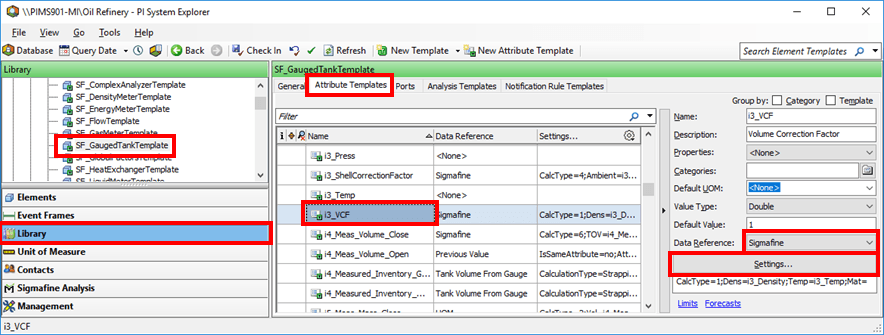

1. In the System Explorer navigation pane, click on Library.

2. From the Templates > Element Templates tree, select the tank template (i.e., SF_GaugedTankTemplate).

3. Click on the Attribute Templates tab.

4. In the Name column, select the Attribute for the Volume Correction Factor (i.e., i3_VCF).

5. Click on the Data Reference down-arrow and select Sigmafine.

6. Click the Settings button to open the Sigmafine Data Reference window.

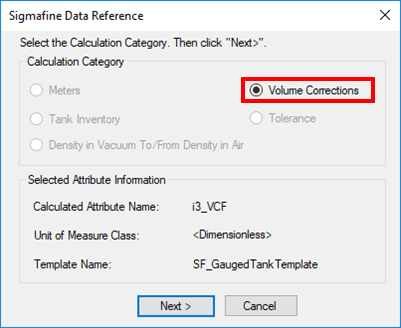

7. Under Calculation Category select Volume Corrections.

8. Click Next.

   The Volume Corrections window opens.

9. Select Tank Shell Correction Factor.

10. Click Next.

    The Volume Correction Factor window opens.

11. Using the following table, select the Attributes for Material Attributes.

    VCF - Material Attributes

    Input Box / Button	Description
    Material Name	Select Attribute containing the material name
    Temperature	Select Attribute with units of temperature
    Density	Select Attribute with units of density

12. When finished, click Finish to complete the configuration.

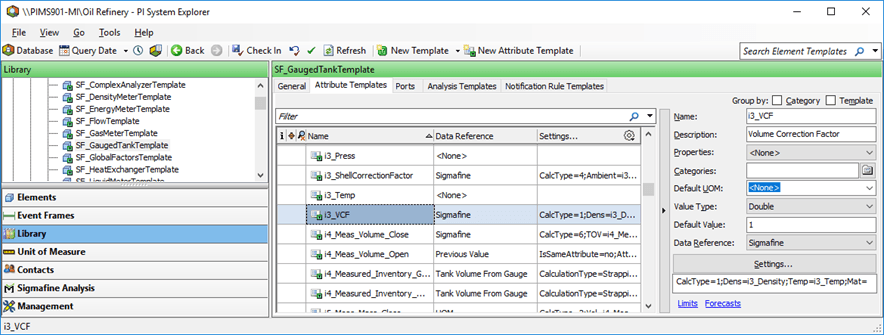

The following sample displays the configuration in the System Explorer window.
