Tank Calculation Tab

The Tank Calculation tab allows you to customize the quantity information that displays on the 'Quantity Info' tab of the 'Movement Management' window.

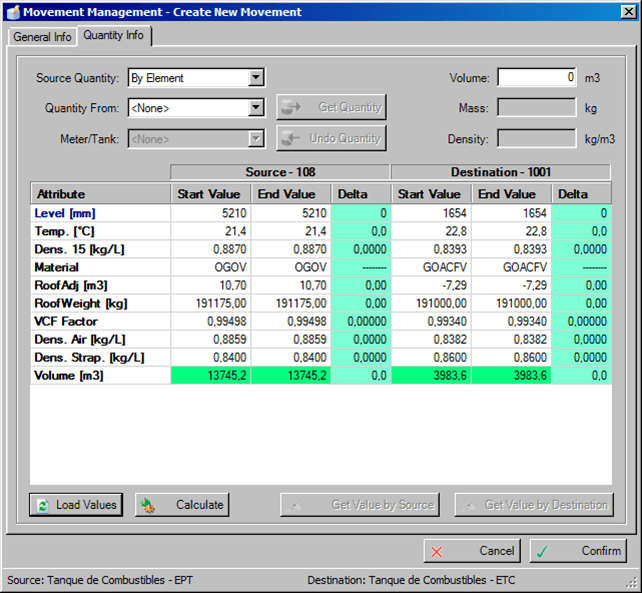

EXAMPLE: Tank Calculation quantity information in Movement Management window

The following figure provides an example of the quantity information as displayed in the Movement Management window.

To change quantity information:

1. Click on the Settings button to open the Utility & Settings window.

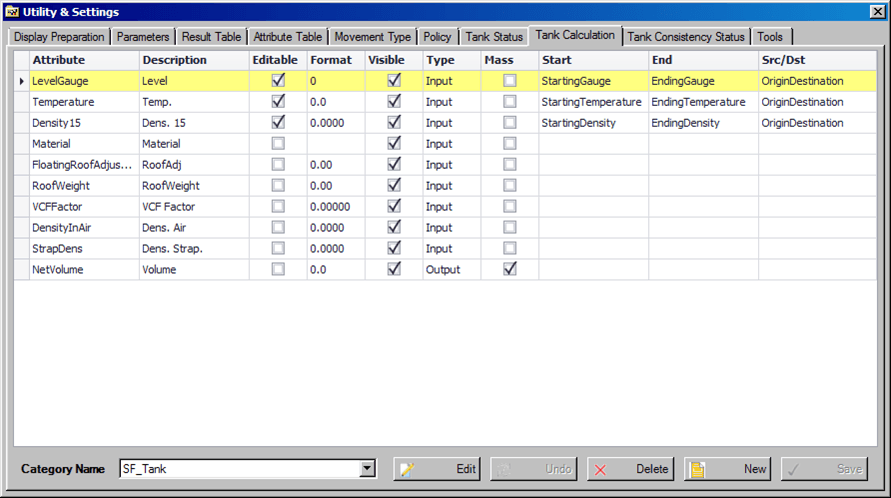

2. Click on the Tank Calculation tab to display the quantity information.

3. Click the Edit button to change the tank calculation behavior.

4. Click the New button to add a new quantity information attribute.

5. Click the Save button to save your changes.

   If you do not want to save your changes, click the Undo button to discard them.

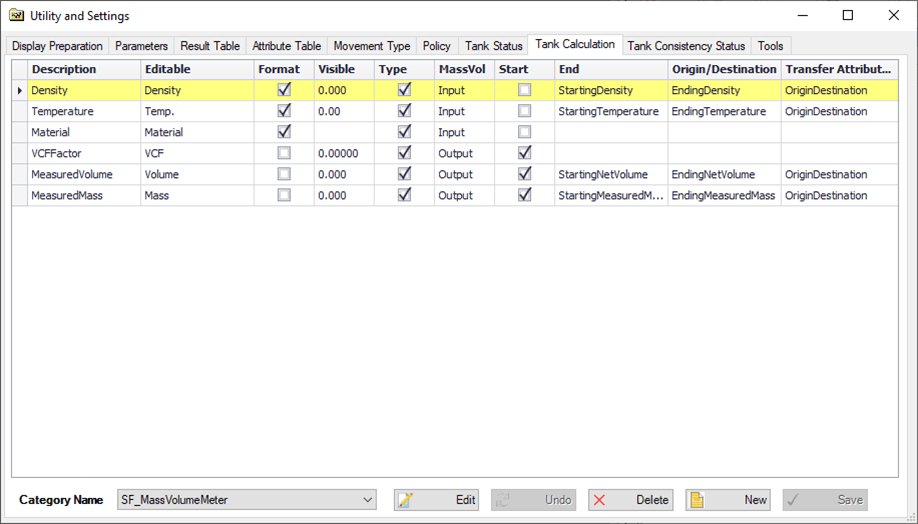

   Note: Configuration for Mass Volume meters must be actualized, in order to enable and support meter calculation (as shown in the following figure).
