AF Table: SFDiag_CaseRepl

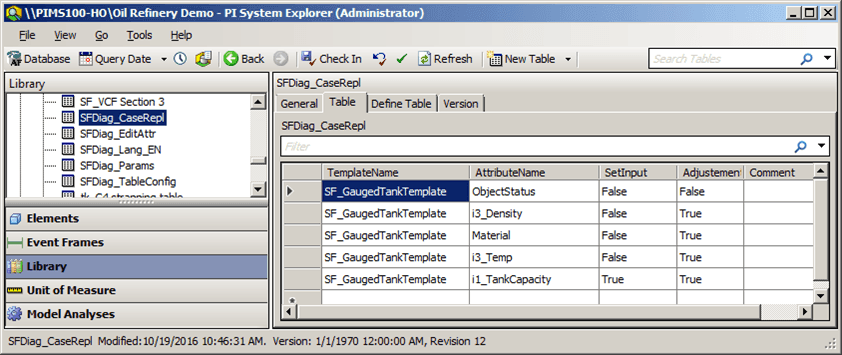

The SFDiag_CaseRepl AF table is used by the Case Data Replication procedure, which copies a set of data from the previous Case to the current Case. The table contains the list of data that must be copied (replicated).Figure 1111: SFDiag_CaseRepl table

The following table provides column settings and descriptions that are displayed in the SFDiag_CaseRepl table.

SFDiag-CaseRepl Table Columns

Column NameDescription
TemplateNameThe Name of the Element template.
AttributeNameThe Name of Attribute whose value must be replicated by the procedure.
SetInputIndicates whether or not the data must be an "Add-Input". Setting are True or False.
AdjustmentIndicates whether or not the data replication must be an "Adjustment". Setting are True or False.
CommentStates information about an adjustment if a comment is included. The Comment column is applicable to only adjustment data replications.
