Programming

There are some basic concepts to be followed to create your first analytic:

• Each SFHub Studio Analytic must always have one and only one 'Main' SFCodeBlock.

• Main and Function are the only SFCodeBlocks without the TOP port and can be placed in any position in the window

• Main and Function SFCodeBlocks should have attached SFCodeBlocks representing the logic

• You cannot have scattered SFCodeBlocks. Each SFCodeBlock having a TOP port must be connected to the bottom port of the previous SFCodeBlock. The only exception to this rule, applies to the 'Comment' SFCodeBlock, which can be placed in any position in the window or connected inside a sequence of SFCodeBlocks.

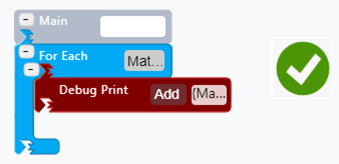

^{Correct Main Function}

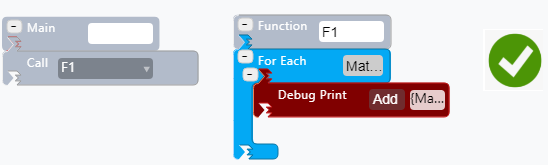

^{Correct Function}

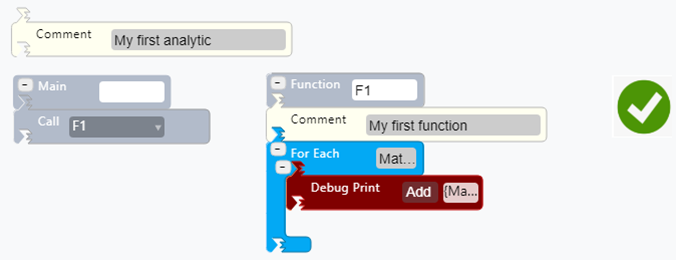

^{Correct Comments}

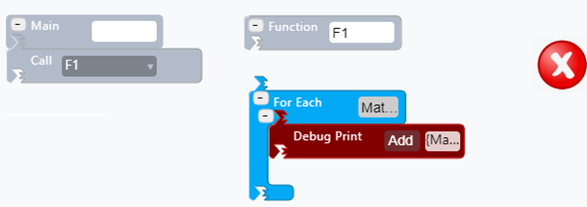

^{Incorrect Function}
