IMM_Status Table

The IMM_Status table contains the information that is used from the "prepare" function.

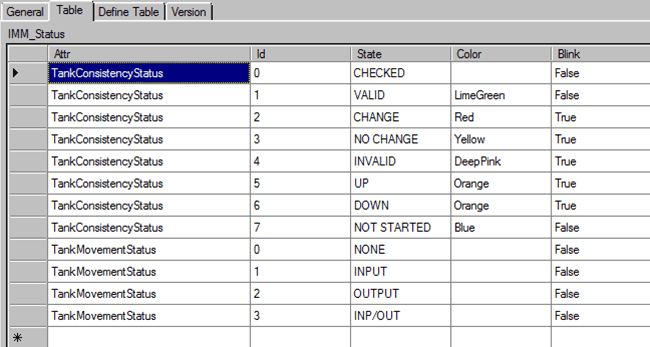

EXAMPLE: IMM_Status table structure

The structure of the 'IMM_Status' table is as follows:

IMM_Status Table Structure

Column Heading Name	Description
Attr	The name of the Attribute of the element.
Id	The Template ID for the attribute.
State	The current state of the attribute.
Color	The name of the color that represents the attribute.
Blink	Indicates whether the Attribute blinks. True = blinks, False = does not blink
