IMM_Params Table
The IMM_Params AF table contains all of the parameters used by the Pimsoft software, and it is useful for the right configurations to be in place when the program is installed.

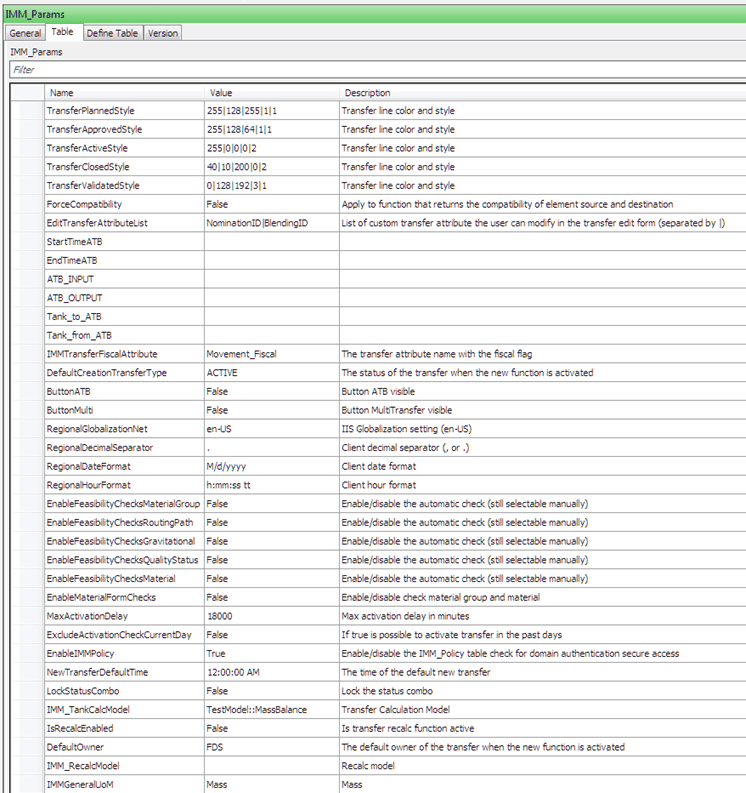

EXAMPLE: IMM_Params table structure
The structure of the 'IMM_Params' table is as follows:
IMM_Params Table Structure
| Column Heading Name | Description |
|---|---|
| Name | The name of the parameter. |
| Value | The value of the parameter. |
| Description | The parameter's description. |
The standard parameters that allow you to choose which features to enable or disable are explained in the following table:
IMM_Params Standard Parameters
| Parameter Name | Description |
|---|---|
| ATB_INPUT | |
| ATB_OUTPUT | |
| ButtonATB | Indicates whether the Button ATB is visible. |
| ButtonMulti | Indicates whether the ButtonMultiTransfer (Bulk Load) is visible. True = visible, False = not visible |
| DefaultCreationTransferType | The status of the transfer when the new function is activated. |
| DefaultOwner | The default owner of the transfer when the new functions is activated. |
| EditTransferAttributeList | A list of custom transfer Attributes you can modify in the transfer edit window (separate Attribute names by an ‘|’).Optionally, the attribute name can be followed by the character ‘y’ separated by a comma, to indicate that the attribute is mandatory to be filled.Example:User|FiscalBlendingID,y|BatchID |
| CheckExistingTransferOnCreation | If set to true, this parameter enables the control over the creation of duplicate movements. The control is performed on the creation of a new movement with a status of PLANNED, ACTIVE or CLOSED.A movement is considered duplicated when one already exists with the same time-range starting from the same source element and ending with the same destination element. For ACTIVE movements, only the start time is taken into consideration.If the condition occurs, a message box appears asking for confirmation on the creation of the duplicated movement.Note: The control of duplicated transfers is not performed when transfers are created using the ‘Transfer Bulk Load’ feature. |
| EnableFeasibilityChecksGravitational | Enable/disable the automatic check (still selectable manually) |
| EnableFeasibilityChecksMaterial | Enable/disable the automatic check (still selectable manually) |
| EnableFeasibilityChecksMaterialGroup | Enable/disable the automatic check (still selectable manually) |
| EnableFeasibilityChecksQualityStatus | Enable/disable the automatic check (still selectable manually) |
| EnableFeasibilityChecksRoutingPath | Enable/disable the automatic check (still selectable manually) |
| EnableIMMPolicy | Enable/disable the 'IMM_Policy' table to check for domain authentication secure access. |
| EnableMaterialFormChecks | Enable/disable the checking of the material group and material during the transfer standard check. |
| EndTimeATB | |
| ExcludeActivationCheckCurrentDay | If set to "true", it allows the transfer to be activated in the past days. |
| ForceCompatibility | Applies to function that returns the compatibility of the Element source and destination. |
| IMM_RecalcModel | Represents the Recalculation Model. |
| IMM_TankCalcModel | Represents the Transfer Calculation Model. |
| IMMGeneralUoM | Equivalent to 'Mass'. |
| IMMTransferFiscalAttribute | Represents the transfer Attribute name with the fiscal flag. |
| IsRecalcEnabled | Indicates whether the transfer recalc function is active. |
| LockStatusCombo | Lock the status the combination box (list of available statuses). |
| MaxActivationDelay | Max activation delay in minutes |
| NewTransferDefaultTime | The time of the default new transfer |
| RegionalDateFormat | Client date format |
| RegionalDecimalSeparator | Client decimal separator (, or .) |
| RegionalGlobalizationNet | IIS Globalization setting (en-US) |
| RegionalHourFormat | The hour format on the Client. |
| StartTimeATB | |
| StartTimeATB | |
| Tank_to_ATB | |
| TransferActiveStyle | The Transfer line color and style. |
| TransferApprovedStyle | The Transfer line color and style. |
| TransferClosedStyle | The Transfer line color and style. |
| TransferPlannedStyle | The Transfer line color and style. |
| TransferValidatedStyle | The Transfer line color and style. |
| EnableTransferListGrouping | Enable/disable the grouping virtual folder (see AttributeTransferListGrouping and AttributeBlendingListGrouping) |
| AttributeBlendingListGrouping | The Transfer Attribute to be used for the blending grouping aggregation in the Transfer List Table (i.e. BlendingID). |
| AttributeTransferListGrouping | The Transfer Attribute to be used for the grouping aggregation in the Transfer List Table (i.e. NominationID). |
| AllowClosedTransferEditing | If set to 'True', it bypasses the work flow check on movement with a CLOSED status. With this setting, you are allowed to change any property. |
| AllowCloseTransferInFuture | If enable is true, it allows you to close a transfer by setting the end time in the future. This feature is not enabled by default. |
| AllowTransferToFromProcessUnit | If enable is true, it allows IMM to create a transfer to or from a process unit. This feature is not enabled by default. |
| DefaultQuantitySource | Indicates the default Quantity Source selection, when a new transfer is created.Allowed values are: By Volume, By Mass, By Element or By Calculation. |
| TransposingNegativeTransfer | If true, it allows you to get the transfer quantity according the tank delta stock transposing the sign. Whenever a destination element in transfer creation decreases in quantity, this negative delta will be attributed to the transfer as well. If false, the absolute value of the tank delta stock is assigned to the transfer. |
| MeterDensityAttribute | The Meter Density attribute used by IMM to retrieve the transfer density value, when the Density From option = Meter. |
| MeterVCFAttribute | The Meter VCF attribute used by IMM to retrieve the transfer VCF value, when the VCF from option = Meter. |
| MeterVolumeAttribute | The Meter volume attribute used by IMM to calculate the average Density value or the average VCF value, when the Density From option = Node or VCF from option = Node. |
| TankDensityAttribute | The Tank Density attribute used by IMM to retrieve the transfer density value, when the Density From option = Source/Destination Tank. |
| TankVCFAttribute | The Transfer VCF attribute where the VCF value is recorded. |
| TransferDensityCalculationMethodAttribute | The Transfer density calculation method where the selected calculation method is recorded (Manual, Material Table, Source Tank, etc.). |
| TransferVCFCalculationMethodAttribute | The Transfer VCF calculation method where the selected calculation method is recorded (Manual, Source Tank, etc.). |
Note: Any changes to a command requires a reset before the changes can take place. IISRESET must be run on the server from a DOS prompt to perform the reset.
