IMM_ElemComp Table

The IMM_ElemComp AF table contains a list of compatible Element pairs used during the transfer creation. The table is used to provide a with a list box of predefined, compatible sources and destinations on the 'General Info' tab of the 'Transfer Management' window.

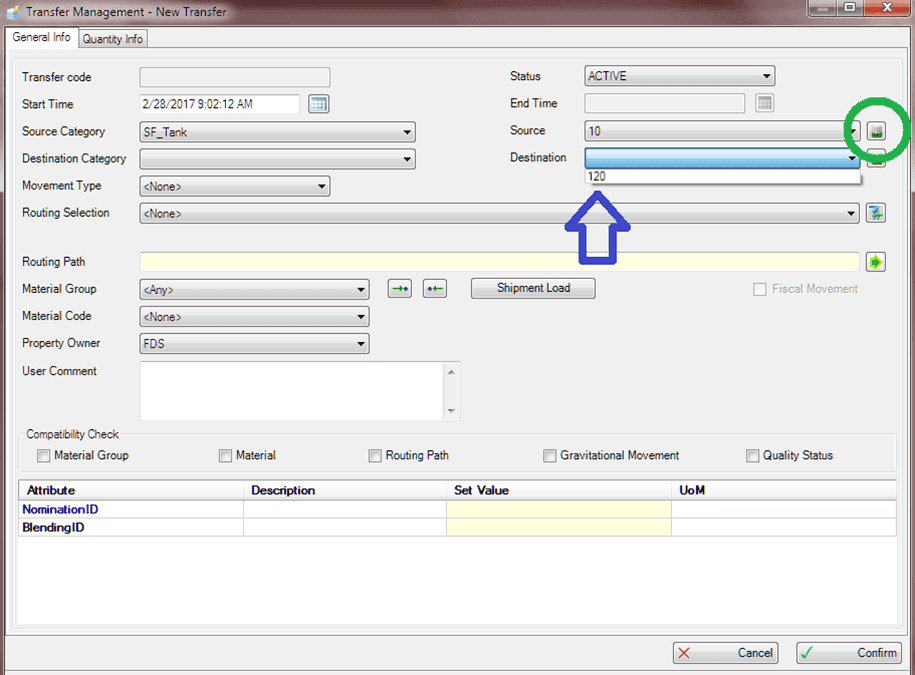

ClosedEXAMPLE: Transfer Management - General Info tab displaying Destination listFigure 1655: Transfer Management - General Info tab displaying Destination list

This Source and Destination list can be used in the edit window of the transfer when selecting a 'Source' and clicking the compatibility button. The 'Destination' list box is automatically filled with elements from the table, and vice versa.

The structure of the 'IMM_ElemComp' table is as follows:

IMM_ElemComp table structure

Column Heading NameDescription
ElementSourceIndicates the starting element.
ElementDestIndicates the ending element.

ClosedEXAMPLE: IMM_ElemComp table structureFigure 1656: *IMM_ElemComp* table structure example
