Transfer Tree List View

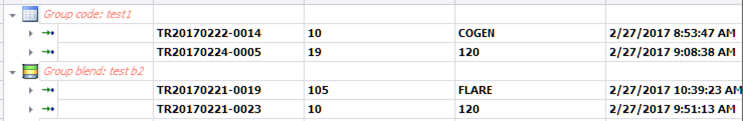

A transfer can be grouped in a common folder based on two different configurable Attributes of the transfer (i.e. Nomination ID and Blending ID), as shown in the following figure.Figure 1595: Group folder of the transfers

  • Group Code (red colored text) is a virtual folder that groups transfers by a code ID. As an example, a code ID could represent transfers belonging to the same NominationID. This level is shown only when the parameter 'EnableTransferListGrouping' is set as 'True' and the parameters 'AttributeTransferListGrouping' or 'AttributeBlendingListGrouping' are set to some string transfer Attribute in the Sigmafine IMM_Params table. The group code Attribute must also belong to the IMM_TableConfig table.

    The single transfer is organized in a 3 level tree structure:Figure 1596: Levels of the single transferFigure 1597: Days split of the single transfer

  • Parent Transfer (black colored text) groups all the daily movements for the transfer. If the transfer has a duration of a single day, only one transfer will belong to this group. The movements go from an initial source to a final destination.

  • Daily Transfer Split (green colored text) is the structure that, for the parent transfer, all of the daily split transfers are listed with the relative attributes.

  • Routing Sub Transfers (blue colored text) is the segmentation of the daily transfer. The movement goes from Element to Element composing the routing path starting from the initial source and ending in the final destination.
