Configure File System Data Set

To configure a File system Data Set:

1. Run the Integration Framework - Configurator application.

   The Integration Framework - Configurator window opens.

2. In the Configured Data Server pane, click on FILESYSTEM to expand the tree of File System Data Servers.

3. Click on a previously created FILESYSTEM Data Server (as shown in Figure 1450), to select it.

4. In the toolbar, click the Add icon.

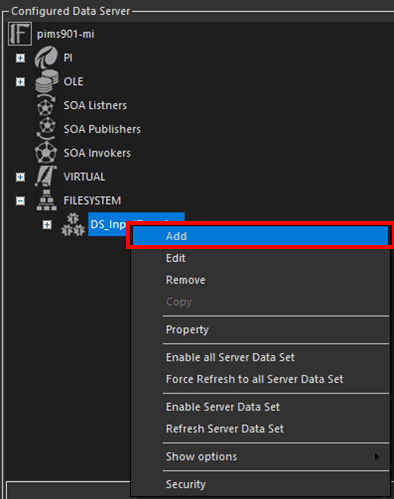

   Alternatively, you can right-click on selected Data Server and select the Add option as shown in the following figure.

   The Configure File System DataServer window opens.

5. In the Name box, type a name for the file system data server.

6. In the File Pattern box, type the file pattern used to look for specific files (i.e., file types).

   This should be the same file pattern as that which was configured on the parent IF Data Server.

7. In the Delimiter box, type the delimiter used inside the file.

8. Click the Test tab to open the Test panel.

9. Click the Test button to run a test.

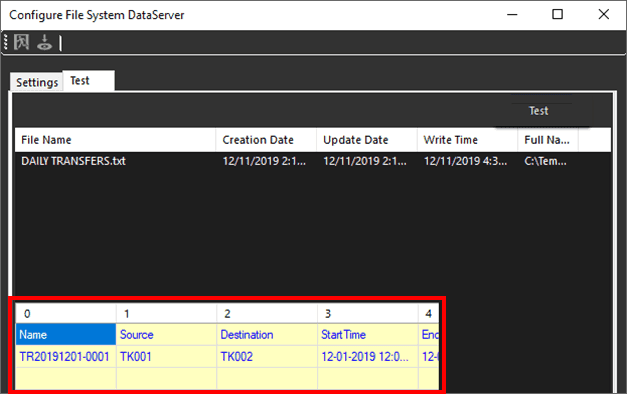

   The results display at the bottom of the window, as shown in the following figure.

10. Click the Save and Exit icon.

    You are returned to the Integration Framework - Configurator window.
