Specialize Your Analyzers

Once the analyzer template (SF_AnalyzerTemplate) has been configured with the required attributes, we suggest that you create derived templates (one for each type of analyzer) to qualify the unit of measure and the measurement type.

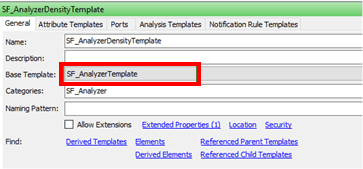

Below is an example of a derived template for density analyzer (SF_AnalyzerDensityTemplate):

Note: Create again new Attributes that need to be qualified. Take care to assign to each one the same name as defined on the base template in order to override the configuration settings

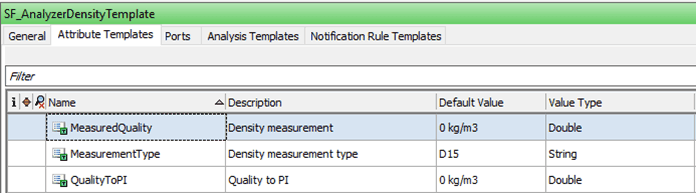

EXAMPLE: Derived template for Density Analyzer

In this example, the UOM kg/m3 has been assigned to the MeasuredQuality and QualityToPi and, ‘D15’ has been assigned to the MeasurementType.
