Import File Format for Quality Tracking Results
Like all Data Table import files, the Quality Tracking Results file must include specific cells indicating how the data table needs to be built (See Import File Format for Tanks and Processes). In addition, the import file must also include the required headers for the data to be imported, as well as the data itself. The required headers for the Quality Tracking Results Data Table can be found in the following table.
Quality Tracking Results - Import File Data Columns Format
| Column | Description |
|---|---|
| Select(x) | If the row contains an "x". the row of information will be imported to Sigmafine. |
| Name | Refers to the given name for the Element. |
| Attribute | Refers to the name of the Attribute to be imported to Sigmafine. |
| Sequence | Refers to the sequence to which the Element applies. |
| Quality | Refers to the Quality of the Element. |
| Value | Refers to the Value of that Element. |
| UOM | The unit of measure for the Element. |

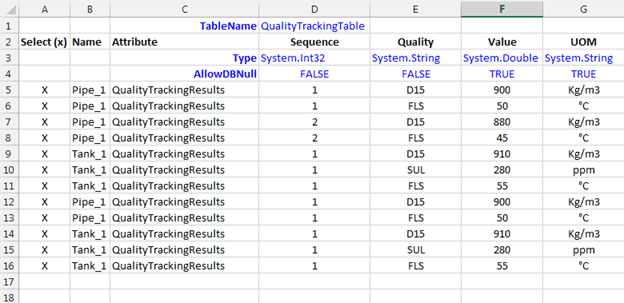

EXAMPLE: Quality Tracking Results - Import File Format
