Import File Format for Genealogy Tracking Results

Like all Data Table import files, the Genealogy Tracking Results import file must include specific cells indicating how the data table needs to be built (See Import File Format for Tanks and Processes). In addition, the import file must also include the required headers for the data to be imported, as well as the data itself. The required headers for the Component Data Table can be found in the following table.

Genealogy Tracking Results - Import File Data Columns Format

Column	Description
Select(x)	If the row contains an "x". the row of information will be imported to Sigmafine.
Name	Refers to the given name for the Element.
Attribute	Refers to the name of the tank Element.
Source	Refers to the Source type (tank, pipe, etc.).
Sequence	Indicates the numeric Sequence of the material according to the requirements of the mixing model.
Quantity	Refers to the reconciled quantity, multiplied by the Fraction.
Fraction	Refers to the Fraction used to multiply the reconciled quantity.

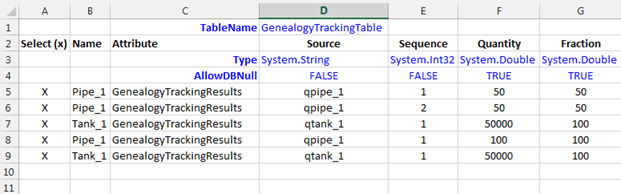

EXAMPLE: Genealogy Tracking Results - Import File Format
