Import File Format for Composition Tracking Results

Like all Data Table import files, the Composition Tracking Results file must include specific cells indicating how the data table needs to be built (See Import File Format for Tanks and Processes). In addition, the import file must also include the required headers for the data to be imported, as well as the data itself. The required headers for the Composition Tracking Results Data Table can be found in the following table.

Composition Tracking Results - Import File Data Columns Format

Column	Description
Select(x)	If the row contains an "x". the row of information will be imported to Sigmafine.
Name	Refers to the given name for the Element.
Attribute	Refers to the name of the Attribute to be imported to Sigmafine.
Material	Refers to the material to which the Element applies.
Sequence	Refers to the sequence to which the Element applies.
Volume	Refers to the volume of the material.
Mass	Refers to the total mass of the material.
Density	Refers to the density of the material.

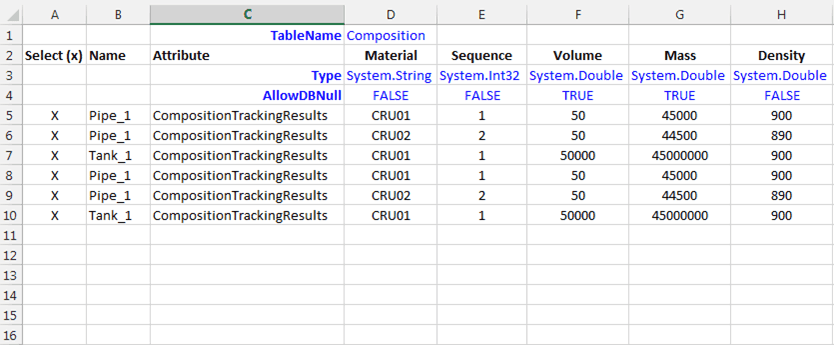

EXAMPLE: Composition Tracking Results - Import File Format

The following figure displays the import file format for importing Composition Tracking Results.
