Import File Format for Component Data Table
Like all Data Table import files, the Component Data Table file must include specific cells indicating how the data table needs to be built (See Import File Format for Tanks and Processes). In addition, the import file must also include the required headers for the data to be imported, as well as the data itself. The required headers for the Component Data Table can be found in the following table.
Component Data Table - Import File Data Columns Format
| Column | Description |
|---|---|
| Select(x) | If the row contains an "x". the row of information will be imported to Sigmafine. |
| Name | Refers to the given name for the Element. |
| Attribute | Refers to the name of the tank Element. |
| Component Name | Refers to the name of the Component. |
| Value | Refers to the Value of that Component. |
| Tolerance | Refers to the Component Tolerance. |
| Maximum | Refers to the maximum number of iterations applicable to non-linear balances. |
| Minimum | Refers to the minimum number of iterations applicable to non-linear balances. |
| Default | Refers to default used if none exists. |
| Measured | Indicates whether the Component is Measured or not. TRUE indicates measured, while FALSE indicates not measured. |

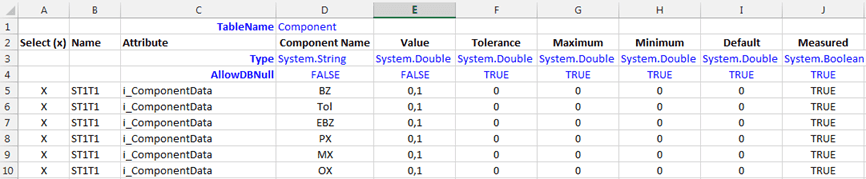

EXAMPLE: Component Data Table - Import File Format
