Import File Format for Tanks and Processes
To load Component Data Tables for Tanks, Processes or any other Element, the same procedure is followed as for Analyzers.
Import File Format for Tank Component Data Tables
| Column | Description |
|---|---|
| Select(x) | If the row contains an “x”, that row of information will be imported to Sigmafine. |
| Name | Refers to the given name for the Element. |
| Attribute | Refers to the name of the Tank Element. |
| Component Name | Refers to the name of the Component. |
| Value | Refers to the Value of that Component. |
| Tolerance | Refers to the Component Tolerance. |
| Measured | Indicates whether the Component is Measured or not. TRUE indicates that it is measures where FALSE indicates that it is not measured. |

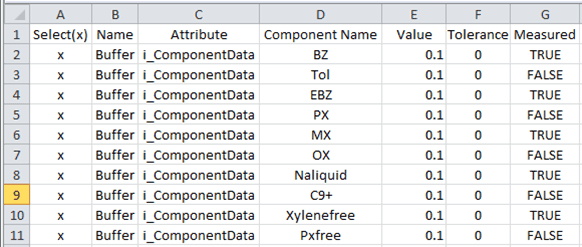

EXAMPLE: Import File Format for Tank Component Data Table
The Data File for a Tank can be like the one as follows, where “Buffer” is the name of the Tank Element:
