Import File Format for Transfers

The import file format for Transfers requires that the following six columns are included, and listed in the order in which they appear here; (Select(x); Name; STARTTIME, ENDTIME; SOURCE; DESTINATION).

Transfers Import File Format Required Columns

Column	Description
Select(x)	If the row contains an “x”, that row of information will be imported to Sigmafine.
Name	Refers to the given name for the Transfer.
STARTTIME	Refers to the Time when the Transfer began to happen (beginning Time for the Transfer).
ENDTIME	Refers to the Time when the Transfer ended (final Time for the Transfer).
SOURCE	Refers to the location from which the Transfer is coming (beginning point).
DESTINATION	Refers to the location to which the Transfer is going to (ending point).

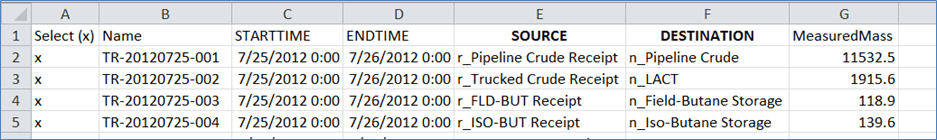

EXAMPLE: Transfers - Import File Format

The remainder of the columns following the required columns are names of attributes. If a column heading does not match an Attribute name, an error is generated.

Should you wish to add text or notes to the data file, you can do so by adding it to a column for which the heading is blank, or to a row in which the first column does not have an “x”.

If the transfer names are provided in the data file, they will be used; otherwise, default names are provided.
