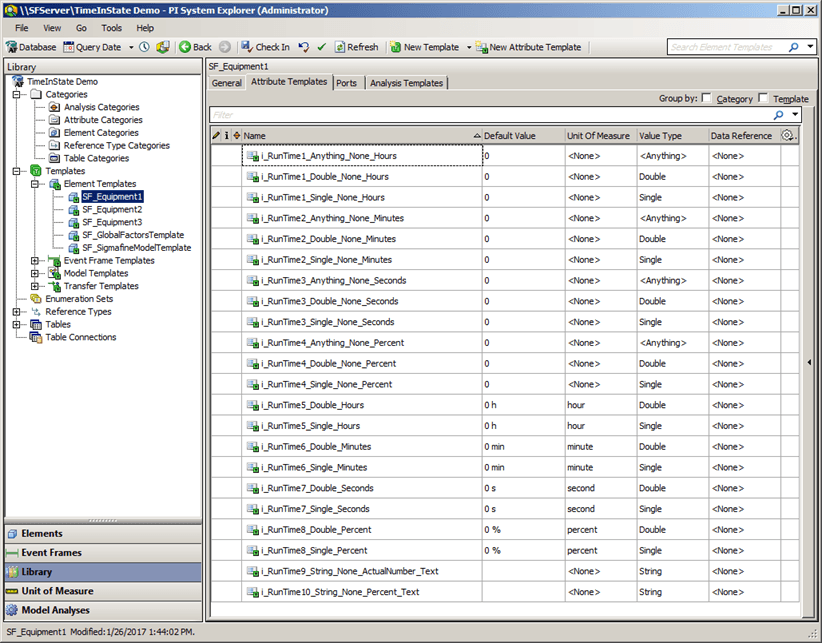

Use Case Setup InformationFigure 640: Attributes with compatible Value Type & UOM options

Time UOM Class​

The ‘Time’ UOM Class has multiple UOMs, only the hour, minute and second are accepted for this Data Reference.Figure 641: Time UOM Class

If the Attribute UOM is within this class but is anything other than the ones mentioned above, then the result is an error.

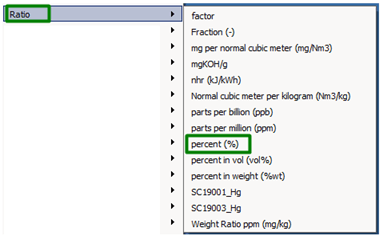

Ratio UOM Class​

The ‘Ratio’ UOM Class has multiple UOMs, but only the percent UOM is acceptable for this Data Reference.Figure 642: Ratio UOM Class

If the Attribute UOM is within this class but is anything other than the one mentioned above (example: Fraction or ppm), then (even though the result may show) it may not the match the UOM.

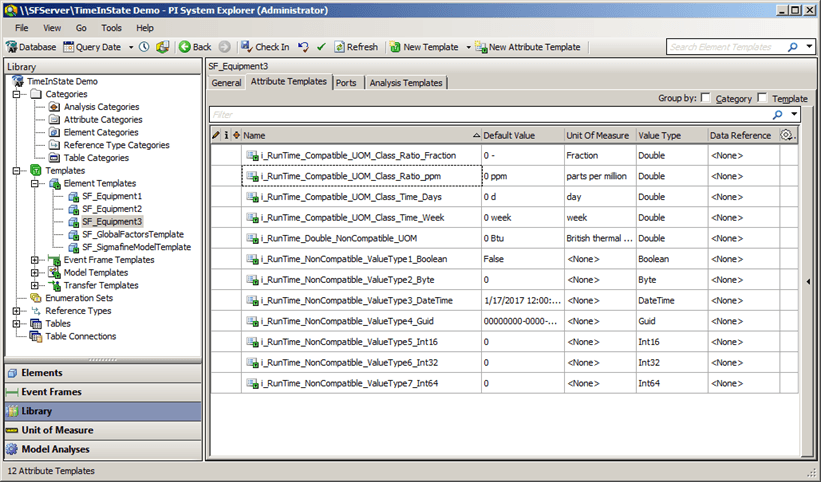

Attributes with Non-Compatible Value Type and UOM OptionsFigure 643: Attributes with Non-Compatible Value Type & UOM Options​

Note: We recommend you set the “SF_CaseInputData” Attribute category for the Time In State Data Reference attributes. This ensures that the data is stored inside the Case when ‘Collect Inputs” is performed for the case.
