View Connections By Display

SigmafineHub Admin users can use the By Display panel on the System info page, to view a list of SFHub Visualizer sessions currently working on a display.

To view by display:

1. Log into SigmafineHub Admin.

2. Click the System info icon.

   The System info page opens.

   ^{System info page}


3. Click on By Display to open the panel.

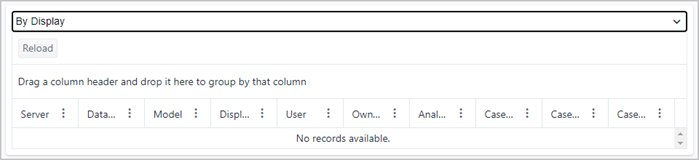

   ^{By Display panel}


   The By Display panel provides the following information.

   By Display Panel Descriptions

   Item	Description
   Server	The name of the Sigmafine Server to which the display is connected.
   Database	The name of the Sigmafine database to which the display is connected.
   Model	The name of the Sigmafine model to which the display connected.
   DisplayName	The name of the display currently opened by the user.
   User	The SFHub username of the person working on the Case.
   Owned	A Boolean value that indicates whether the user is the owner of the Sigmafine Case (the Case that is currently checked out by the user).
   AnalysisName	The name of the Sigmafine analysis to which the Sigmafine display is connected.
   Casename	The name assigned to the Case (it might be an empty string, since it is not mandatory).
   CaseStart	The start date of the Sigmafine Case.
   CaseEnd	The end date of the Sigmafine Case.

   note

   Case information might be empty when the display is open, but no Case has been selected.

4. When finished, click By Display or click its X icon, to close the panel.
