Publish Tables Tab

The Publish Tables tab is used to publish tables to a SQL Server.

The Publish Tables tab’s toolbar includes:

Publish Tables Toolbar Controls

Control IconControl NameControl Description
PublishPublishes all of the tables that the user has selected using the checkboxes associated with each table in the list. The list of tables is automatically generated when you select a Sigmafine Database.
Select AllChecks all of the checkboxes in the list of tables. Click this button if you want all the tables to be published with a single publish request.
Deselect AllRemoves the check from all currently checked checkboxes.
RefreshRefreshes the list of tables. When this button is clicked, all of the checked boxes are cleared and any table changes are loaded to the list.

Enable/Disable the Publishing Tables Feature​

To publish tables to a SQL Server:

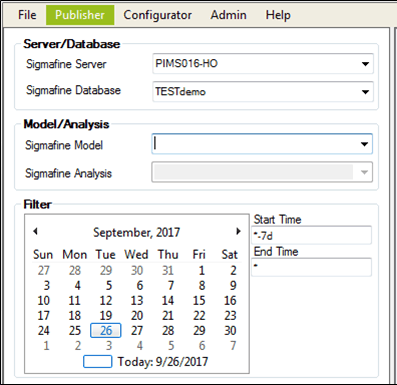

  1. Select Publisher from the primary menu.Figure 1151: Publisher selected

  2. Click on the Sigmafine Server down-arrow and select the server containing the database that holds the tables.

  3. Click on the Sigmafine Database down-arrow and select the database that contains the tables to be published.

  4. Click on the Publish Tables tab if it is not already selected.

    The Publish Tables list displays the list of tables based on the Server and Database you have selected.

    Figure 1152' Publish Tables tab

  5. Do one of the following for each table, depending on whether you want to enable or disable the publish feature:

  • Check the checkbox next to each table for which you want to enable publishing.
  • Uncheck the checkbox next to each table for which you want to disable publishing.
  1. Click the Save icon to save the configuration changes.
