Sigmafine Modeler Overview

The Sigmafine Modeler is an add-in to ProcessBook that was designed to help do the following tasks:

  • Create a visual Model of a plant or process using the Modeler tools along with ProcessBook.
  • Define the templates and elements and their attributes, tying objects in the Model to AF, using the Sigmafine Modeler tools.
  • Define and run analyses using the Sigmafine Modeler tools.
  • Analyze a Case to check materials flowing in, out and around the processing, storage, and receiving\shipping areas. This is used in conjunction with Sigmafine, providing data reconciliation and material balance analyses.
  • Import an existing model (created in System Explorer, for example) and use the ProcessBook tools to enhance the visual effects.
  • Associate ProcessBook graphical symbols with AF templates.
  • View AF data.

ClosedEXAMPLE: Sigmafine Modeler Add-In

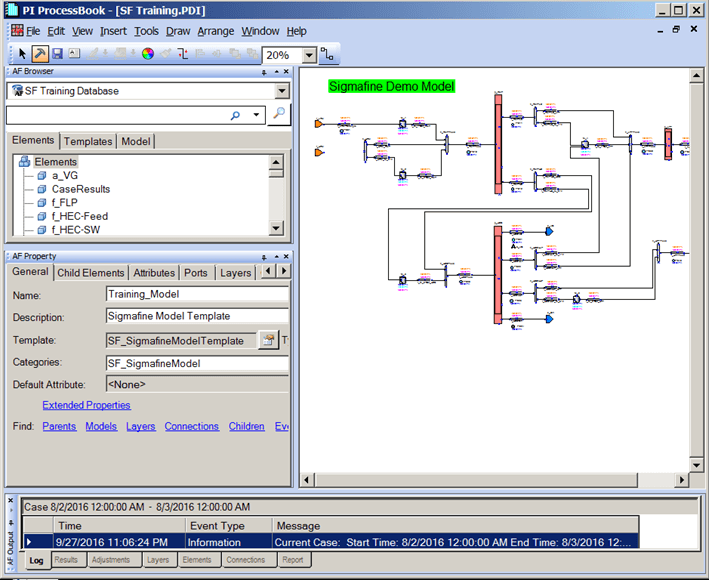

The following figure shows the Sigmafine Modeler Add-In, open in Build mode within ProcessBook.Figure 732: Sigmafine Modeler Add-In
