Tank Monitoring Output Attributes

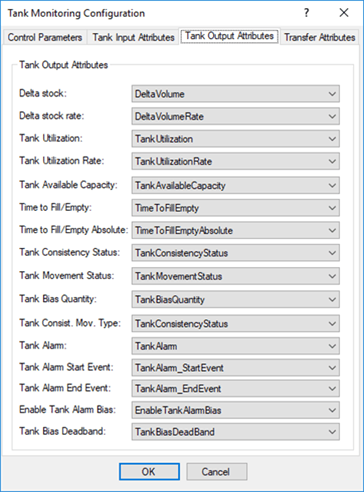

Tank Monitoring Tank Output Attributes are configured in the Tank Monitoring Configuration window under the Tank Output Attributes tab, as shown in the following figure. These attributes must be configured as output for the Tank Monitoring Analysis Rule.

The following table provides descriptions of the tank output attributes for the Tank Monitoring Analysis Rule.

Analysis Configuration - Required Output Attributes

Attribute Name	Description
Delta Stock	Tank attributes with the delta stock calculation.
Delta Stock Rate	Tank attributes with the delta stock rate calculation.
Tank Utilization	Tank attributes with the tank utilization in percentage (%).
Tank Utilization Rate	Tank attributes with the tank utilization rate.
Tank Availability Capacity	Tank attributes with the tank Available Capacity.
Time to Fill/Empty	Tank attributes with the time To Fill/Empty at the current time.
Tank Consistency Status	Tank alarm status.
Tank Movement Status	Tank attributes with the tank Alarm Status.
Tank Bias Quantity	Tank attributes with the bias quantity.
Tank Consist. Mov. Type	Transfer attribute with the tank consistency movement type.
Tank Alarm	Transfer attribute with the tank alarm.
Tank Alarm Start Event	Transfer attribute with the setting of the tank alarm start event.
Tank Alarm End Event	Transfer attribute with the setting of the tank alarm end event.
Enable Tank Alarm Bias	Transfer attribute with the value of Destination of Delta Stock Rate.
Tank Bias Dead band	Tank bias dead band.

The following table provides the properties of the input attributes that must be configured for the Tank Monitoring Analysis Rule.

Analysis Configuration - Required Output Attributes Properties

Attribute Name	Unit Class	Default Name	Parameter Value Type
Delta Stock	Volume	DeltaStock	Double
Delta Stock Rate	Volume rate	DeltaStockRate	Double
Tank Utilization	Percentage	TankUtilization	Double
Tank Utilization Rate	Ratio	TankUtilizationRate	Double
Tank Availability Capacity	Volume	TankAvailabilityCapacity	Double
Time to Fill/Empty	Time	TimeToFillEmpty	Double
Tank Consistency Status	None	TankConsistencyStatus	String
Tank Movement Status	None	TankMovementStatus	String
Tank Bias Quantity	Volume	TankBiasQuantity	Double
Tank Consist. Mov. Type	None	ConsistencyMovement	Int16
Tank Alarm	None	TankAlarmEvent	Double
Tank Alarm Start Event	None	TankAlarmStartEvent	DateTime
Tank Alarm End Event	None	TankAlarmEndEvent	DateTime
Enable Tank Alarm Bias	None	TankAlarmBiasEnable	Boolean
Tank Bias Deadband	None	TankAlarmBiasDeadBand	Double
