Web Part Usage

Here we describe how you can use the WDE Web Part once a connected web part has been provided all the parameters required to show the data (see Configuration Procedure for configuration instructions and Web Page Example for an example of a typical Web Data Entry Web Page).

To use the WDE web part:

1. On the Web Part page, click on the Working Part down-arrow and select the case you want, as shown in the following figure.

   The last available case is selected by default. If you want to use that case, you can skip this step.

2. In the User box, verify the current user and if the lock feature is enabled, also verify the lock status (as shown in the following figure).

3. In the Data Table, verify the values (see following figure).

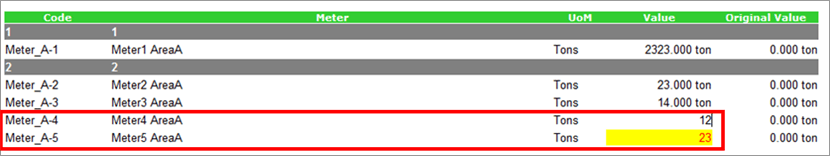

   Note that if your login account has 'write' or 'supervisor' rights, you can correct missing or incorrect values. To make a correction or entry, click in the value's cell and type your edit or entry. For example, in the prior figure there was BAD data in the UOM Value cell for Meter_A-5. We also noticed that the value is the same cell for Meter_A-4 was not correct. In the following figure, we edited both cells to show a value of 12 (12,000) for Meter_A-4 and 23 (23,000) for Meter_A-5.

4. To save any new values you enter, click the Save button at the top of the of Web Part page.

   The following figure shows how the totals appear when changed and saved.

   If your login account has 'supervisor' rights, you can also lock the current selection.

5. To lock the current selection, click the Lock button at the top of the Web Part page.

   This action disables the 'Save' button, preventing further manual adjustments, until a supervisor clicks the 'Lock' button again.

   If your login has 'write' or 'supervisor' rights, you can reload the actual case.

6. To reload the actual case, click the Refresh button at the top of the Web Part page.

   The refresh is equivalent to performing an AF run from "Collect Inputs" to "Publish", without refreshing adjustments.
