Sigmafine Hub (SFHub) - SSO Configuration Setup

Windows Authentication (Kerberos) - Customer Implementation Guide

  • Audience: Customer IT / Active Directory Administrators, Security Teams, and SFHub Administrators

Purpose: Enable Kerberos-based SSO for SFHub.
Success criteria: klist shows a ticket for HTTP/your-sfhub-hostname.
Scope: Server (IIS) + client trust configuration.

Table of Contents​

  1. Overview
  2. Authentication Model
  3. Prerequisites
  4. SFHub Server Configuration (IIS)
  5. Service Principal Name (SPN) Configuration
  6. Client-Side Trust Configuration
  7. Option A - Site to Zone Assignment via Domain GPO
  8. Option B - Browser Policies via Registry (Machine-Level)
  9. Option C - Manual Per-User Local Intranet Zone (Testing Only)
  10. SSL Certificate Requirements
  11. Validation and Verification
  12. Troubleshooting
  13. Appendix A - Quick Deployment Checklist
  14. Appendix B - Navigation Index

1. Overview​

Sigmafine Hub (SFHub) supports Single Sign-On (SSO) using Windows Authentication. When configured correctly for Kerberos, domain users can access SFHub seamlessly without entering credentials.

This guide explains the server-side and client-side configuration required to ensure consistent Kerberos-based authentication across environments.

2. Authentication Model​

  • Authentication mechanism: Windows Authentication (SPNEGO / Negotiate)
  • Primary protocol: Kerberos (recommended)
  • Fallback protocol: NTLM (optional)

Browsers will only send Windows credentials automatically to sites they trust. If trust is not established, users may be prompted for credentials or authentication may fall back to NTLM.

3. Prerequisites​

3.1 Environment Requirements​

  • SFHub server is joined to the Active Directory domain
  • Client machines are domain-joined
  • Users sign in using domain accounts
  • Access SFHub using a DNS hostname (not an IP address)
  • Time is synchronized between clients, SFHub server, and domain controllers

3.2 Glossary​

TermDescription
FQDNFully Qualified Domain Name (e.g. sf-iat-02.sigmafinehub.dev)
SPNService Principal Name used by Kerberos to identify a service
Local Intranet ZoneBrowser security zone where credentials are sent automatically

4. SFHub Server Configuration (IIS)​

Note
In standard customer deployments, the SFHub Setup Kit automatically configures IIS as part of the installation process. This includes:

  • Enabling Windows Authentication
  • Disabling Anonymous Authentication (where applicable)
  • Configuring the Windows Authentication providers (Negotiate / Kerberos, and NTLM if allowed)

The steps below are provided for verification, validation, or troubleshooting purposes, and for scenarios where IIS configuration must be reviewed or adjusted manually.

4.1 Enable Windows Authentication​

  1. Open IIS Manager on the SFHub server
  2. Select the SFHub site or virtual application
  3. Open Authentication
  4. Enable Windows Authentication
  5. Disable Anonymous Authentication (recommended for SSO)

4.2 Configure Providers​

Under Windows Authentication > Providers:

  • Ensure Negotiate is enabled (required for Kerberos)
  • Remove NTLM if Kerberos-only authentication is required

Leaving NTLM enabled may mask Kerberos configuration issues.

5. Service Principal Name (SPN) Configuration​

Kerberos requires an SPN mapping between the HTTP service name and the account that runs the IIS application pool.

5.1 Identify the Application Pool Identity​

Example:

Application Pool Identity: DOMAIN\\sfhub.service

5.2 Why the SPN Uses the Deployment Hostname​

Kerberos service tickets are requested for the exact hostname used in the browser.

Example URL:

https://sf-iat-02.sigmafinehub.dev/sfhub

Required SPN:

HTTP/sf-iat-02.sigmafinehub.dev

Each additional DNS alias (CNAME) also requires its own SPN.

5.3 Create the SPN​

Run as Domain Administrator:

setspn -Q HTTP/sf-iat-02.sigmafinehub.dev
setspn -S HTTP/sf-iat-02.sigmafinehub.dev DOMAIN\\sfhub.service

5.4 Verify the SPN​

setspn -L DOMAIN\\sfhub.service

5.5 Remove the SPN (If Needed)​

setspn -D HTTP/sf-iat-02.sigmafinehub.dev DOMAIN\\sfhub.service

6. Client-Side Trust Configuration​

Browsers only send Windows credentials automatically to trusted sites.

Choose one of the following approaches:

  • Option A: Domain Group Policy (best for managed environments)
  • Option B: Browser policy allowlist (machine-level)
  • Option C: Manual per-user configuration (testing only)

7. Option A - Site to Zone Assignment via Domain GPO​

  1. Open Group Policy Management Console (gpmc.msc)
  2. Create and link a new GPO to the target user OU
  3. Navigate to:
User Configuration
  Administrative Templates
    Windows Components
      Internet Explorer
        Internet Control Panel
          Security Page
            Site to Zone Assignment List
  1. Enable the policy and add:
SiteZone
https://*.sigmafinehub.dev1 (Local Intranet)

8. Option B - Browser Policies via Registry (Machine-Level)​

Registry Location​

HKEY_LOCAL_MACHINE\\SOFTWARE\\Policies\\Google\\Chrome

Required Values​

AuthServerAllowlist = *.sigmafinehub.dev
AuthNegotiateDelegateAllowlist = *.sigmafinehub.dev

Restart the browser or reload policies via:

  • chrome://policy
  • edge://policy

9. Option C - Manual Per-User Local Intranet Zone (Testing Only)​

  1. Open Internet Options (inetcpl.cpl)
  2. Go to Security -> Local intranet -> Sites -> Advanced
  3. Add the SFHub URL
  4. Restart the browser

10. SSL Certificate Requirements​

  • Use a trusted CA-signed certificate
  • Hostname must be included in the certificate SAN
  • Untrusted certificates can cause credential prompts or NTLM fallback

11. Validation and Verification​

11.1 Verify Kerberos Ticket​

klist

Confirm a ticket exists for:

HTTP/your-sfhub-hostname

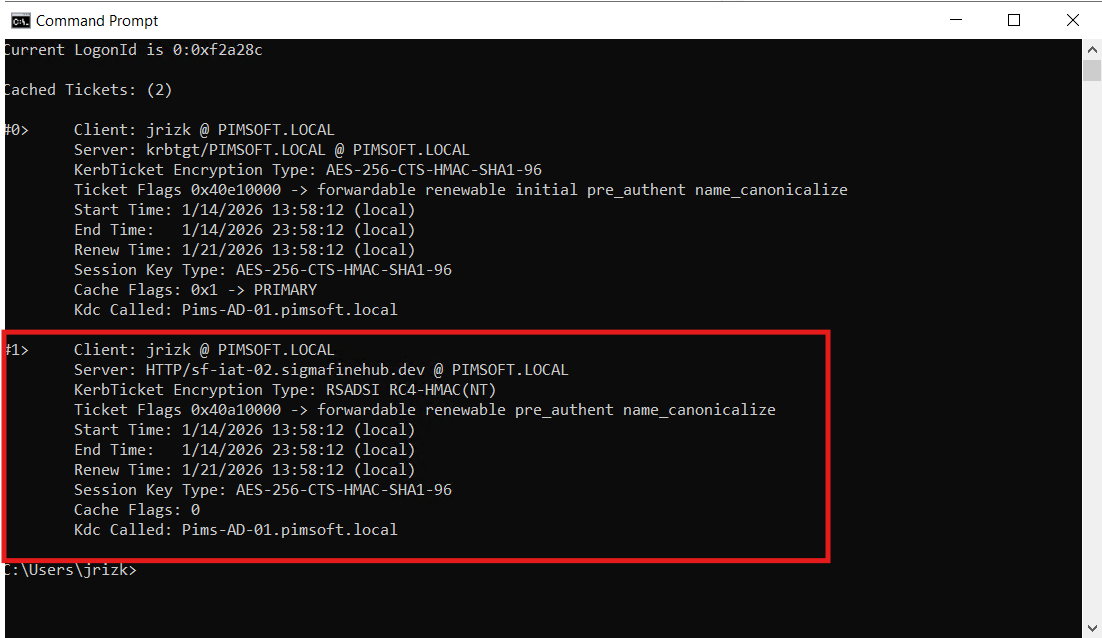

If everything is configured correctly, you should see a Kerberos ticket for HTTP/your-sfhub-hostname. This indicates the Kerberos ticket was successfully issued for the SFHub service.

Kerberos ticket for HTTP service

[OK] If the HTTP/your-sfhub-hostname ticket is present, Kerberos SSO is working.
[!] If it is missing, review SPN setup and client trust configuration.

11.2 Verify Browser Policies​

  • chrome://policy
  • edge://policy

Ensure policies show Status = OK.

12. Troubleshooting​

IssuePossible Cause
Credential promptSite not trusted or certificate not trusted
NTLM used instead of KerberosSPN missing or NTLM enabled
Works on one machine onlyPolicy not applied consistently

Appendix A - Quick Deployment Checklist​

  • DNS hostname resolves to SFHub server
  • Windows Authentication enabled in IIS
  • SPN registered on application pool identity
  • SSL certificate trusted and valid
  • Client trust configured (GPO or browser policy)
  • Kerberos ticket validated

Appendix B - Navigation Index​

  • IIS configuration: Section 4
  • SPN setup: Section 5
  • GPO configuration: Section 7
  • Browser policies: Section 8
  • Verification: Section 11
  • Troubleshooting: Section 12
