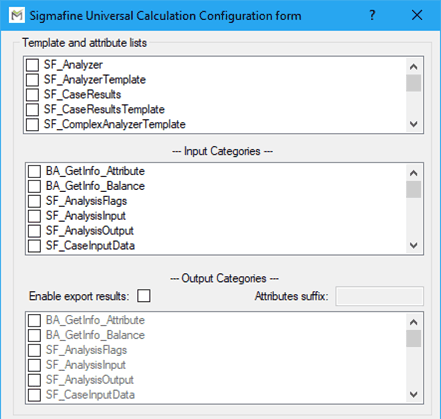

Filling In the Attribute, Input and Output CategoriesFigure 442: Sigmafine Universal Calculation Configuration form - Template and Attribute lists, Input Categories and Output Categories

The following table provides descriptions for the first 3 settings:

Template, Input, and Output

ParameterDescription
TemplateSelect the templates (by checking each one) that will participate to the analysis.
InputSelect the Input Categories (by checking each one) that will participate to the collect-input step of the analysis. For each category matching a INPUT result will be created.
OutputSelect the Output Categories (by checking each one) that will participate to the run step of the analysis. For each category matching a OUTPUT a copy will be attempted from the available results created in COLLECT-INPUT.
Enable export resultsEnable the copy-action from source to destination
Attribute SuffixIt defines the output Attribute suffix to be considered while copying the results.
