Configuring - Sequential Execution Analysis Rule

Sequential Execution Analysis Rule is configured as part of a Sigmafine based model, a Model with elements built on the Sigmafine Element templates.

To configure the analysis rule, follow the steps below using either the System Explorer or the Modeler.

  1. Follow the steps under either System Explorer or Modeler.

    ClosedSystem Explorer

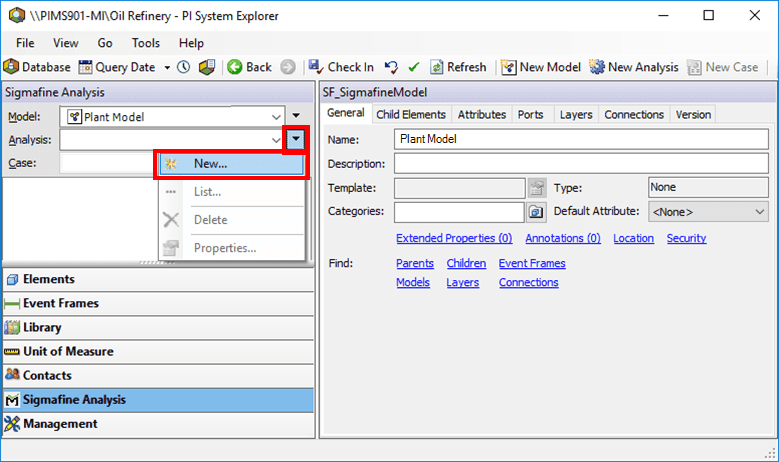

  2. In the Sigmafine Analysis navigation panel go to the Model for which you are creating the analysis.Figure 444: System Explorer - Sigmafine Analysis Model - select New analysis

  3. Click the Analysis menu button and select New from the menu, to open the Choose Analysis Template window.

    ClosedModeler

  • On the SF Analysis Toolbar, click the New Analysis button to open the Choose Analysis Template window.Figure 445: Modeler - SF Analysis Toolbar - New Analysis button

The following steps are common to both System Explorer and ProcessBook (Modeler) configurations.

  1. In the Choose Analysis Template window, \<None> is selected by default; this value is fine for what you need to do.

  2. Click OK.

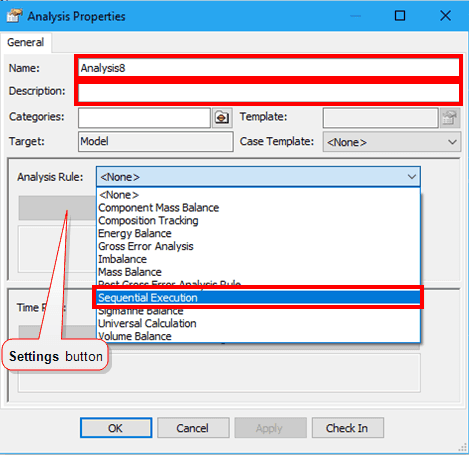

    The Analysis Properties window opens.Figure 446: Analysis Properties window - configure analysis rule

  3. In the Name box, type a name for the new analysis.

  4. (Optional) In the Description box, type a short description of the analysis.

  5. Click the Analysis Rule down-arrow and select Sequential Execution.

  6. Under Analysis Rule, click the Settings button.

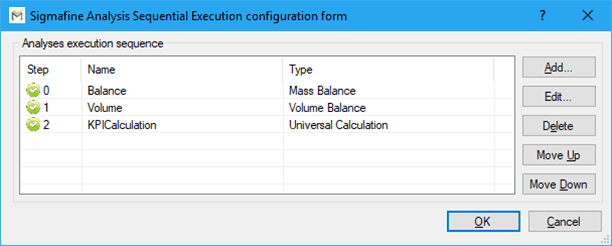

    The Sigmafine Analysis Sequential Execution configuration form window opens.Figure 447: Sigmafine Analysis Sequential Execution configuration form window

  7. Select the properties and options as described in the following \topics.
