Filling In the Mass Balance Input Tab

The Input tab contains the selection of calculation input Attributes for the Inventory (tanks), Meter and Transfer elements in the model. These Attributes contain the measured and corrected measurements, as well as the measured and corrected tolerances on the measurement. The selected values and tolerances will be the inputs to the Sigmafine Reconciliation engine.

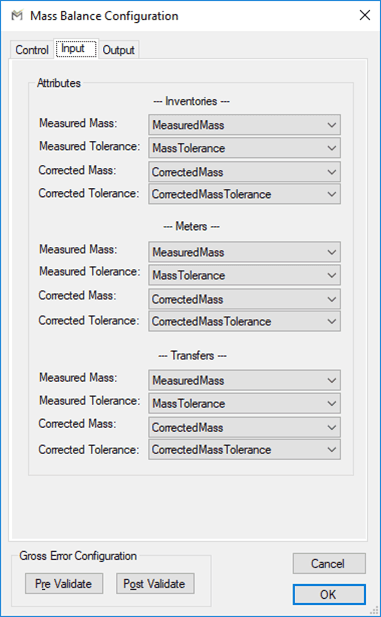

Input Tab

Element	Parameter	Default Attribute Name	Unit Class	Description
Inventories Meters Transfers	Measured Mass	MeasuredMass	Mass	Measured mass value of the element.
Inventories Meters Transfers	Measured Tolerance	MeasuredTolerance	Mass	Tolerance Attribute of the measured value.
Inventories Meters Transfers	Corrected Mass	CorrectedMass	Mass	Corrected Mass measurement (if available) overrides the Measured Mass.
Inventories Meters Transfers	Corrected Tolerance	CorrectedTolerance	Mass	Tolerance Attribute of the measured value.
