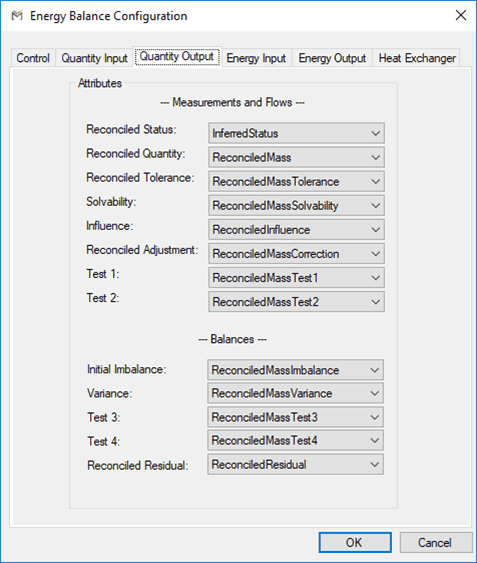

Filling In the Energy Balance Quantity Output Tab

The Quantity Output tab contains the selection of output Attributes for the elements in the model. These Attributes hold the values for the reconciled measurement and tolerance, as well as statistical results, such as Solvability and Imbalance. The selected values and tolerances are the outputs from the Sigmafine Reconciliation engine.

Note that the output values you use for the parameters listed in the following table must be valid ones specified in the Element templates.

Quantity Output Tab

Parameter	Default Attribute Name	Description
Reconciled Status	InferredStatus	Operation status after the analysis is performed.
Reconciled Quantity	ReconciledMass	Value that Sigmafine calculates for a measurement when reconciliation is run.
Reconciled Tolerance	ReconciledMassTolerance	Tolerance Sigmafine Calculates for each reconciled value.
Solvability	ReconciledMassSolvability	Status from the solvability analysis. Values are:R – RedundantS – SolvableNS – Not solvableNR – Not Redundant
Influence	ReconciledInfluence	Indicates a measurement’s effect on the balance result set if the measurement is changed or removed completely from the balance. Values between -1 and 1.
Reconciled Adjustment	ReconciledMassCorrection	Value that is the difference between the reconciled value and the measured value.
Test 1	ReconciledMassTest1	Measurement correction ratio to its tolerance.
Test 2	ReconciledMassTest2	Measurement correction ratio to its reconciled tolerance.
Initial Imbalance	ReconciledMassImbalance	Quantity difference between the sum of measured flows into a balance Element and the sum of measured flows out.
Variance	ReconciledMassVariance	Variance calculated from the uncertainties of input and output flows of the balance point.
Test 3	ReconciledMassTest3	Imbalance Ratio. Division of balance error by the balance variance and is a measure of the magnitude of the imbalance.
Test 4	ReconciledMassTest4	Test 4, based on Test3, except normalized by the Balance Test Critical Value.
Reconciled Residual	ReconciledResidual	The Reconciled Residual is the difference between the sum of the reconciled of all inputs and the sum of the reconciled of all outputs for balance elements.
