Filling In the Energy Balance Energy Output Tab
The Energy Output tab contains the selection of output Attributes for the elements in the model. These Attributes hold the values for the reconciled energy measurement and tolerance, as well as statistical results, such as Solvability and Imbalance. The selected values and tolerances are the outputs from the Sigmafine Reconciliation engine.
Note that the output values you use for the parameters listed in the following table must be valid ones specified in the Element templates.

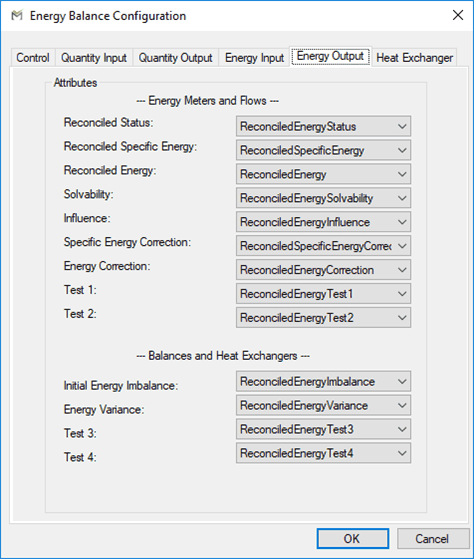

Energy Output Tab
| Parameter | Default Attribute Name | Description |
|---|---|---|
| Reconciled Status | ReconciledEnergyStatus | Operation status after the analysis is performed. Values are the following:OS – Out of ServiceIS – In Service |
| Reconciled Specific Energy | ReconciledSpecificEnergy | Specific energy value that Sigmafine calculates for a measurement when reconciliation is run. |
| Reconciled Energy | ReconciledEnergy | Energy value that Sigmafine calculates for a measurement when reconciliation is run. |
| Solvability | ReconciledEnergySolvability | Status from the solvability analysis. Values are:R – RedundantS – SolvableNS - Not solvableNR - Not Redundant |
| Influence | ReconciledEnergyInfluence | Indicates effect of a measurement on the balance result set if the measurement is changed or removed completely from the balance. Values are between -1 and +1. |
| Specific Energy Correction | ReconciledSpecificEnergyCorrection | Value that is the difference between the measured and reconciled specific energy values. |
| Energy Correction | ReconciledEnergyCorrection | Value that is the difference between the measured and reconciled energy values. |
| Test 1 | ReconciledEnergyTest1 | Measurement correction ratio to its tolerance. |
| Test 2 | ReconciledEnergyTest2 | Measurement correction ratio to its reconciled tolerance. |
| Initial Energy Imbalance | ReconciledEnergyImbalance | Quantity difference between the sum of the energy into a balance Element and the sum of the measured energy out of the balance element. |
| Energy Variance | ReconciledEnergyVariance | Variance calculated from the uncertainties of input and output energy of the balance point. |
| Test 3 | ReconciledEnergyTest3 | Imbalance Ratio. Division of balance error by the balance variance and is a measure of the magnitude of the imbalance. |
| Test 4 | ReconciledEnergyTest4 | Test 4, based on Test3, except normalized by the Balance Test Critical Value. |
